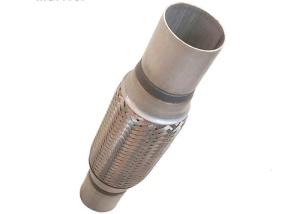

Corrugated Flexible Exhaust Pipe for Car and Motorcycle Muffler
Introduction:
A flexible exhaust pipe is flexible piece of pipe that allows the exhaust system some flexibility. Flex pipes are an essential part of any front wheel drive vehicle and on most all wheel drive vehicles. On front wheel cars, since the motor is mounted transversely, when you accelerate the motor rocks and the flex pipe protects your exhaust system from breakage. Without that extra flex the rocking motion would crack the exhaust system causing a loud leak.
Feature of flexible exhaust pipe:
1) Exhaust Flexible pipe with interlock, automobile exhaust system component
2) Double-layer stainless steel bellow
3) With interlock liner
4) With 409 caps
5) with High flexibility and long life
6) Installed between engine and muffler
7) Used to decrease engine noise and vibration
8) made of stainless steel
9) Size, diameter and length can be produced as per client's requirement
Stainless Steel Flex Exhaust Bellows Specifications:
| Inner Diameter (ID) | Length(L) | Inner Diameter (ID) | Length(L) |
| 1-3/4” (45mm) | 4”(102mm) | 3”(76.2mm) | 4”(102mm) |
| 6”(152mm) | 6”(152mm) |
| 7”(178mm) | 8”(203mm) |
| 8”(203mm) | 10”(254mm) |
| 9”(230mm) | 12”(305mm) |
| 10”(254mm) | 42mm | 120mm |
| 11”(280mm) | 165mm |
| 12”(305mm) | 180mm |
| 2”(50.8mm) | 4”(102mm) | 50mm | 120mm |
| 6”(152mm) | 165mm |
| 7”(178mm) | 55mm | 120mm |
| 8”(203mm) | 165mm |
| 9”(230mm) | 180mm |
| 10”(254mm) | 200mm |
| 11”(280mm) | 250mm |
| 12”(305mm) | 60mm | 160mm |
| 2-1/4”(57.2mm) | 4”(102mm) | 200mm |
| 6”(152mm) | 240mm |
| 7”(178mm) | 65mm | 150mm |
| 8”(203mm) | 200mm |
| 9”(230mm) | 70mm | 100mm |
| 10”(254mm) | 120mm |
| 11”(280mm) | 150mm |
| 12”(305mm) | 200mm |
| 2-1/2”(63.5mm) | 4”(102mm) | Note: Customized size are available. |
| 6”(152mm) |
| 7”(178mm) |
| 8”(203mm) |
| 9”(230mm) |
| 10”(254mm) |
| 11”(280mm) |
| 12”(305mm) |

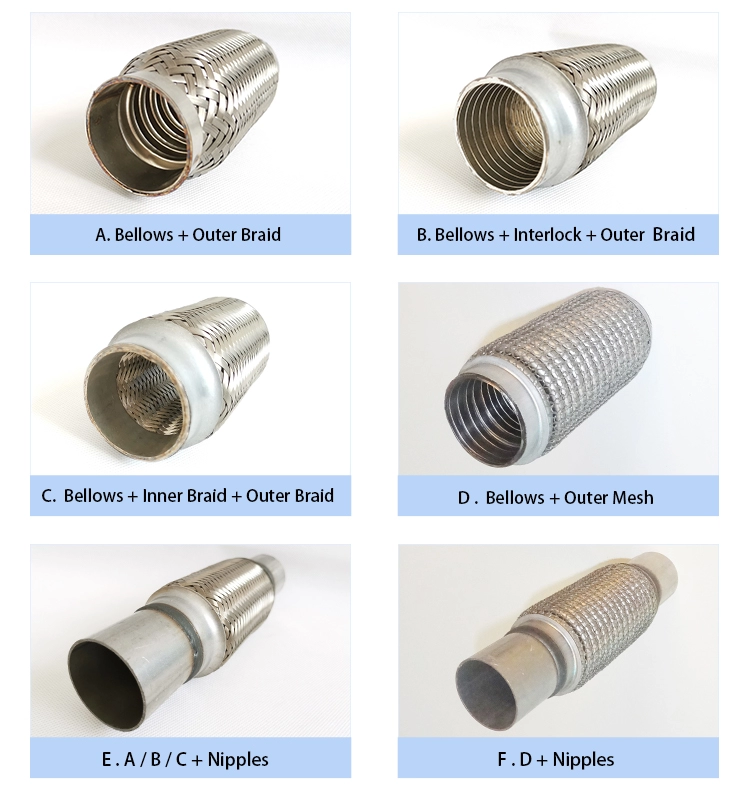

Types:
1, outer braided + bellow
2, outer braided + bellow + inner braided
3, outer braided + bellow + interlock
4, outer wire mesh + bellow
5, outer wire mesh + bellow + interlock
6, outer braided + bellow + nipple
(Size, diameter and length can be produced as client's requirements)
