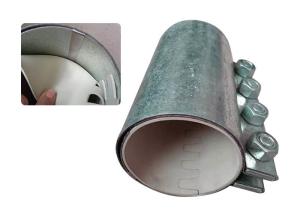

4inch Morris Coupling Heavy Metal Pipe Couplings with Nitrile rubber or silicone gasket
Product Detail:
The pipe couplings is used to connect pneumatic conveying pipes and material conveying pipes.This is a heavy-duty pipe couplings, 8.8 grade heavy-duty bolts, and the number of bolts is configured according to the length.The larger the size, this product has certain pressure requirements, and the pressure requirements for different sizes are different. Please contact customer service (Amy) in advance
The material can be selected according to the used to environment (stainless steel / galvanized plate)
The standard length produced is 150mm/200mm/250mm or other customized lengths (customized lengths have a minimum order quantity)
Product Parament :
| size | 1.5-12inch |
| Metal material | Galvanized sheet |
| Gasket material | Nitrile rubber / Neoprene or food grade |
| Package | carton box + pallets |
| Length | 150mm/200mm/250mm |
| Condition | New |
| Zinc plate pipe coupling |
| Size | shell material | Gasket | Bolts quantity | Nut Quantity |
| 38*150 | Zinc plate | Nitrile rubber gasketor customer's require | 3 | 3 |
| 51*150 | Zinc plate | Nitrile rubber gasketor customer's require | 3 | 3 |
| 63*150 | Zinc plate | Nitrile rubber gasketor customer's require | 3 | 3 |
| 76*150 | Zinc plate | Nitrile rubber gasketor customer's require | 3 | 3 |
| 89*150 | Zinc plate | Nitrile rubber gasketor customer's require | 3 | 3 |
| 102*150 | Zinc plate | Nitrile rubber gasketor customer's require | 3 | 3 |
| 114*200 | Zinc plate | Nitrile rubber gasketor customer's require | 4 | 4 |
| 129*250 | Zinc plate | Nitrile rubber gasketor customer's require | 5 | 5
|

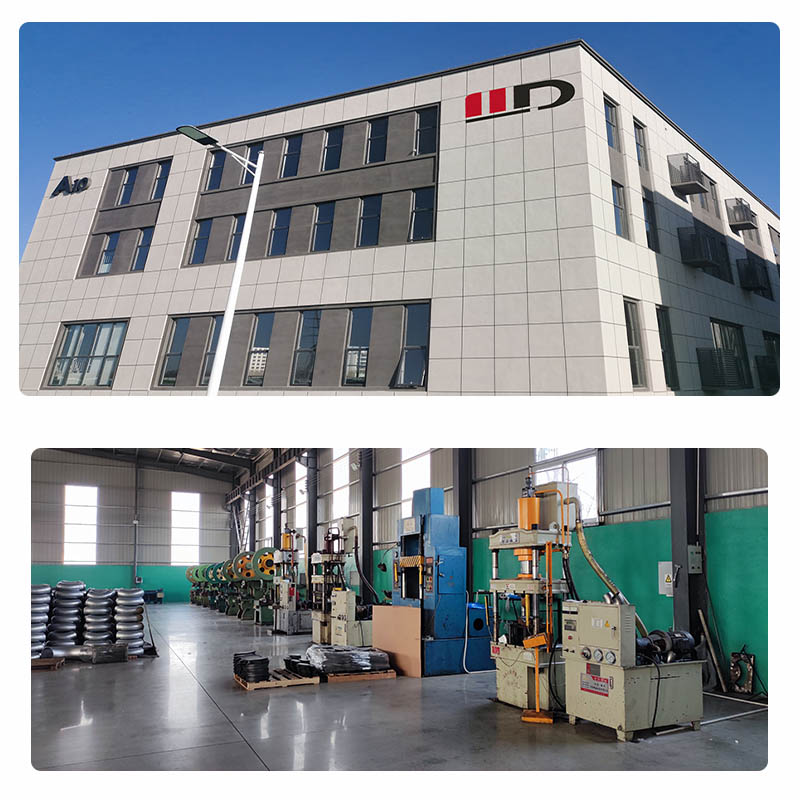

Company Picture :

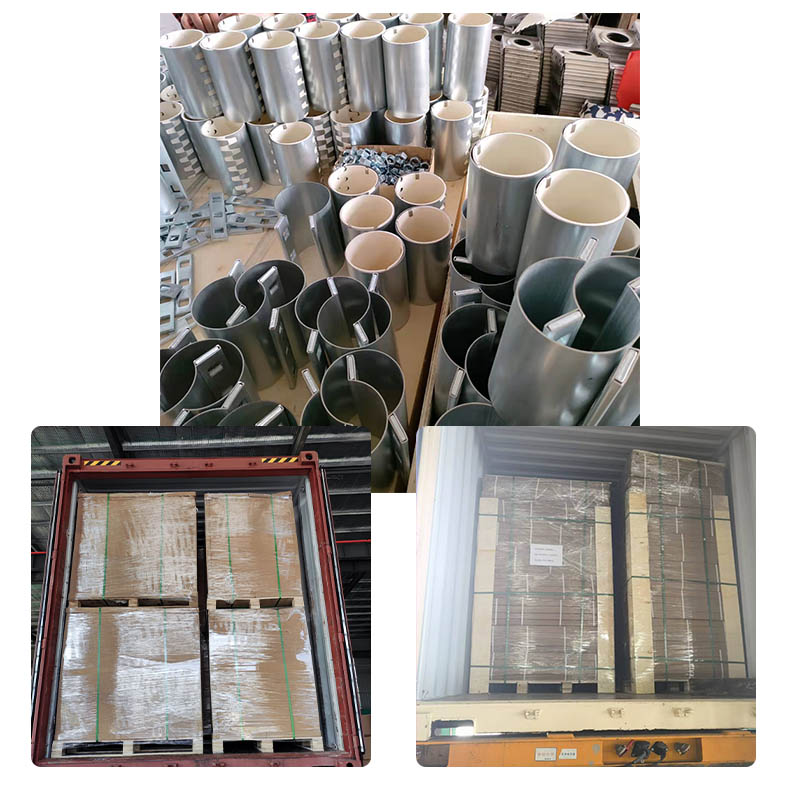

Product picture:
The following figure is the product structure diagram:
FAQ :
1. How about the Delivery time?
A. About 5-35 days,according order.
2. Can you produce according to customers' design?
A. Sure, we are professional manufacturer, OEM and ODM are both welcome.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the
product under your brand name, also the size can be changed as your requirement.
3. What packaging?
Packing: Carton + pallet / wooden box
